Home » Products » HC005S/IR Super-compact Sensor(IR photocell)
HC005S/IR Super-compact Sensor(IR photocell)
  • HC005S

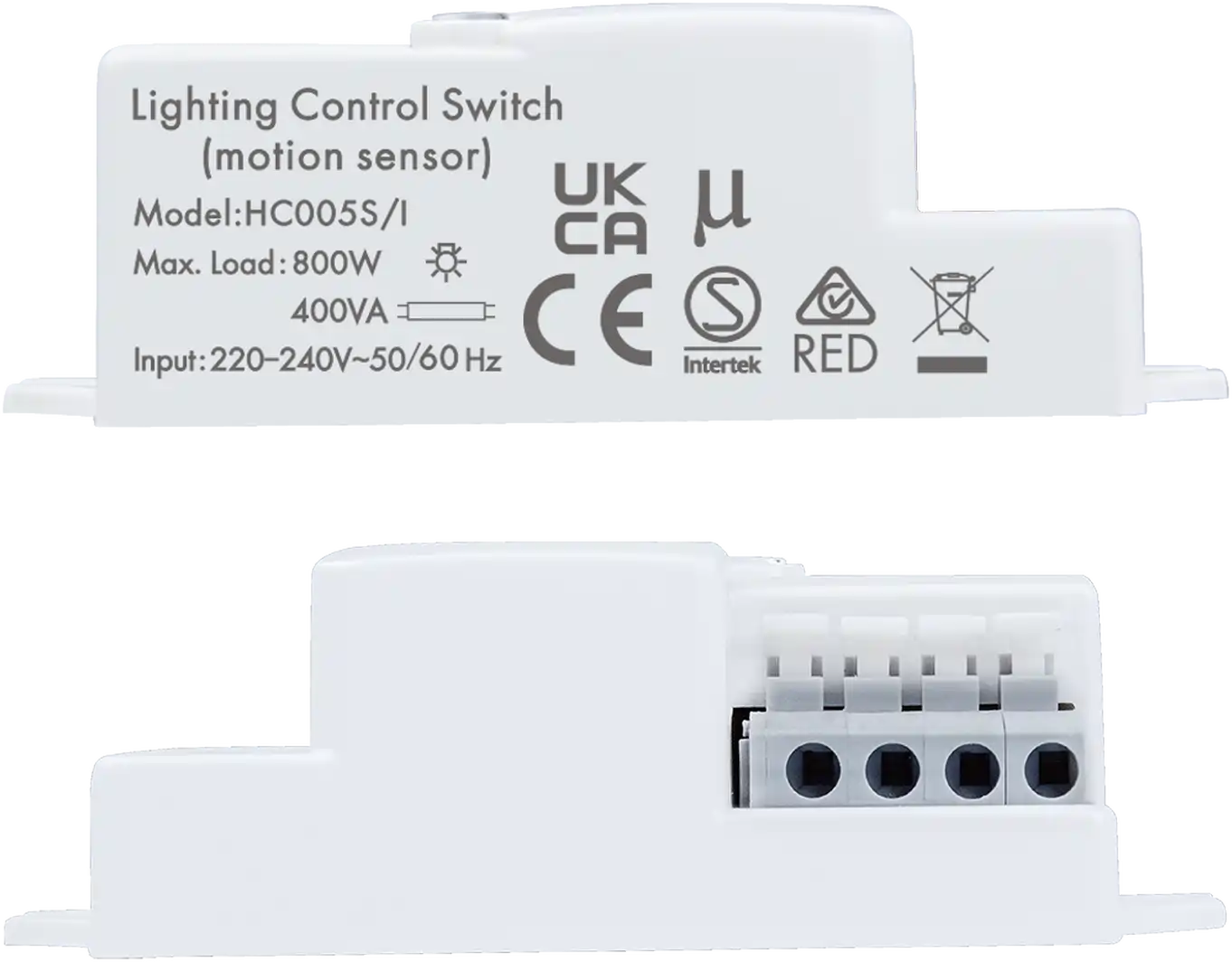

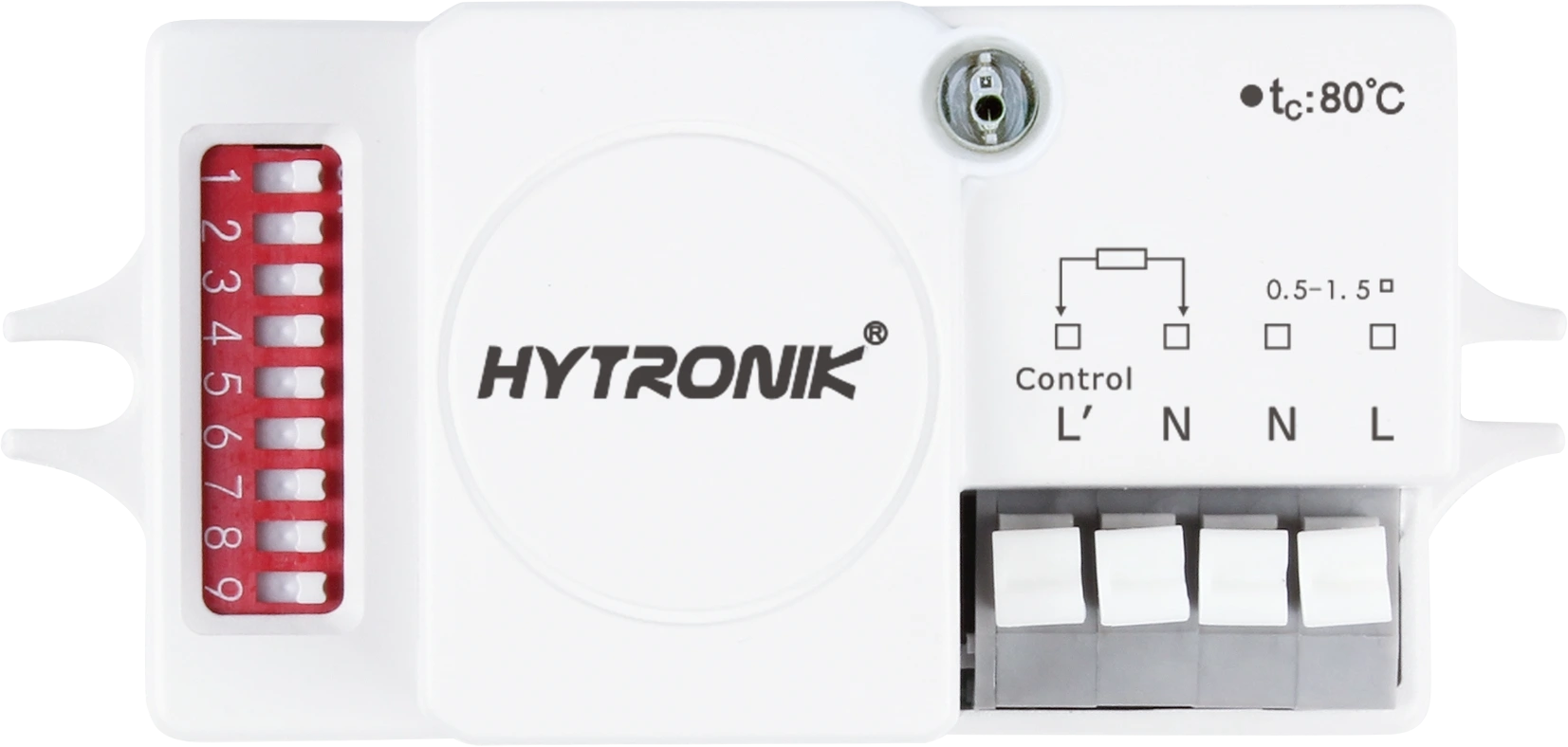

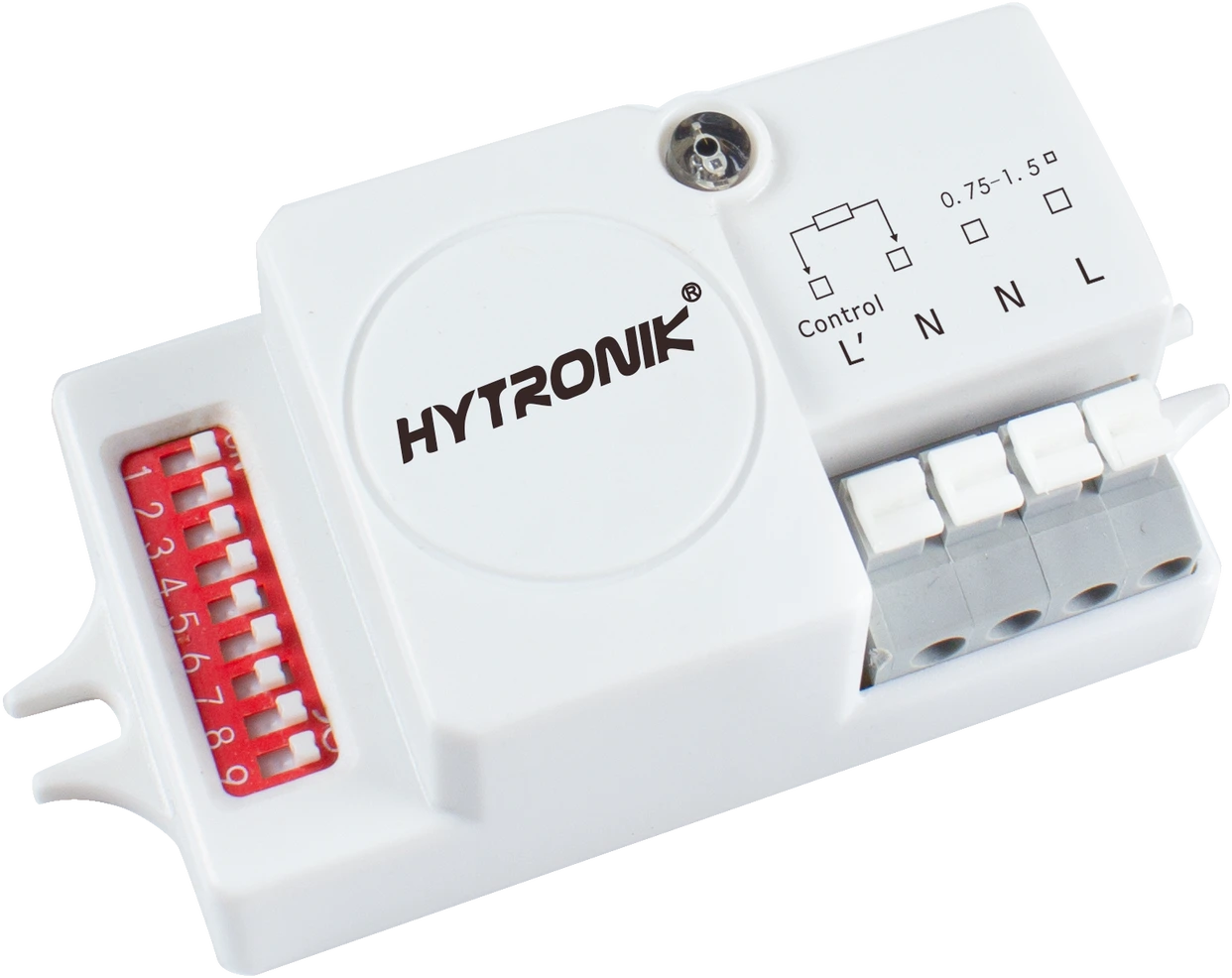

HC005S/IR Super-compact Sensor(IR photocell)
Super compact microwave motion sensor, ON/OFF control, IR photocell
  • Product Detail
  • Send Inquiry

Model no.: HC005S
On-off Control
Zero-cross relay operation
Loop-in and loop-out terminal


Technical Data
Operating voltage:220-240VAC
Switched power:Max.400VA (capacitive) Max.800W(resistive)
Stand-by power:<0.5W
Warmming-up time:20s
Detection area:10/30/50/75/100%, can be customized
Hold time:5s/30s/1min/5min/10min/20min/30min, can be customized
Daylight threshold:2~50lux daylight/twilight/darkness, can be customized
Microwave frequency:5.8 GHz + / – 75MHz
Microwave power:<0.2mW
Detection range:Max. (ØxH): 12m x 6m
Detection angle:30° – 150 °
Mounting height:Max. 6m
Operating temperature:-20℃ ~ +70℃
IP rating:IP20   IP65(mounted in Hytronik special box)
certificate:Semko, CB, EMC, CE, RED, RCM
